H系列平行轴齿轮箱规格参数
传动级别:H系列工业齿轮箱有单级、二级、三级和四级传动。
安装形式: 地脚安装、法兰安装、轴装安装、带胀紧盘安装。
传动比范围:1.25-450
输出扭矩:3~900kNm
电机功率:2.8-4823KW。
输入方式: 直连电机，轴输入和连接法兰输入。
可按客户要求配逆止器。和R、K系列组合得到更大的速比

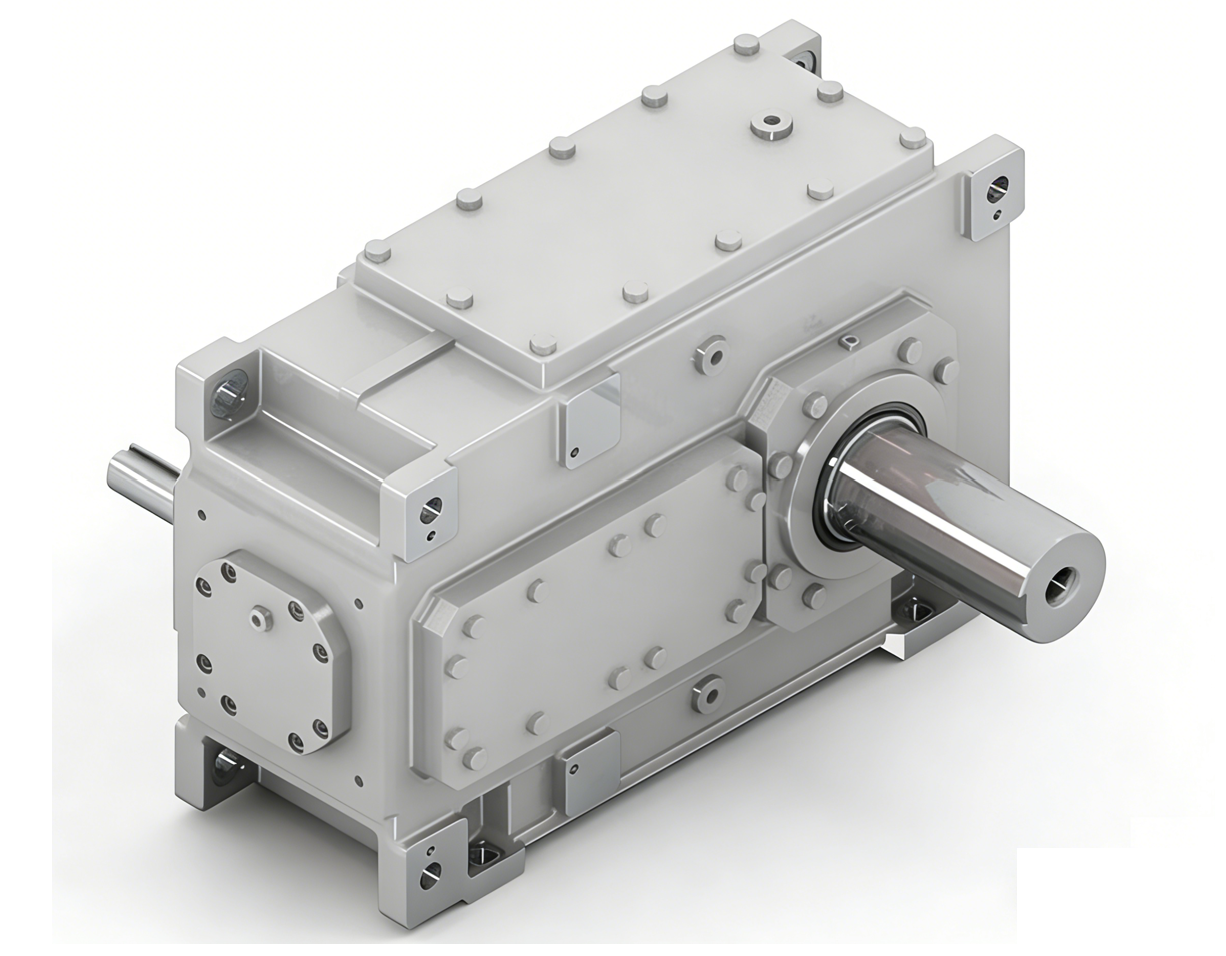

H Series Parallel Shaft Gearbox Specifications

· Transmission Stages: H series industrial gearboxes are available in single-stage, two-stage, three-stage, and four-stage configurations.

· Mounting Types: Foot-mounted, flange-mounted, shaft-mounted, and shrink disc-mounted options.

· Transmission Ratio Range: 1.25 to 450

· Output Torque: 3 to 900 kNm

· Motor Power: 2.8 to 4823 kW

· Input Methods: Direct motor connection, shaft input, and flange input.

· Customization: Backstops can be provided as per customer requirements. It can be combined with R and K series to achieve higher transmission ratios.
